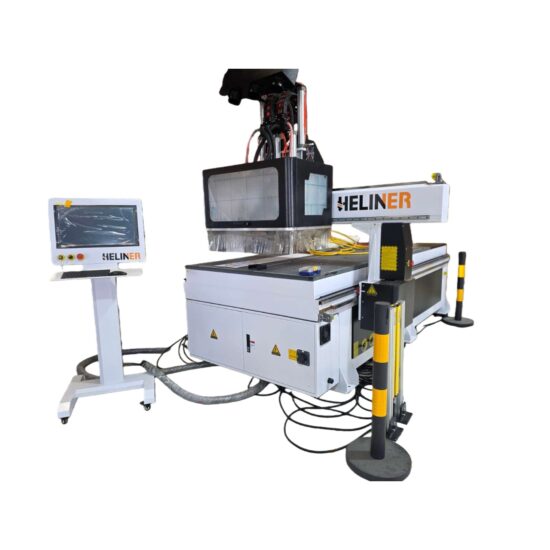

H-1325A Classic CNC Router 1300 x 2500mm

  • Budget choice for an industrial CNC router
  • Large working size for cutting a full sheet 1200x2400mm
  • 300mm gantry height for thick material
  • 1300x2500x300mm working area
  • Heavy-duty welded steel frame
  • 3.5kw air cooling spindle – takes ER25 collet, 18000RPM max speed
  • Hybrid Servo Motor with NK105 G2 Control System
  • NK105 control system with a hand-held pulse controller. No additional PC need to operate the machine
  • Vacuum Work Table – 6 individually controlled channels with T slots for clamping
  • 2.2kw Dual bags dust extraction system. Dust pipes, clamps and dust shoe included
  • 5.5kw air-cooled vacuum pump. Air filter, vacuuming hose, clamps included.
  • Automatic Lubrication System for all the moving parts
  • Working voltage: 415VAC, 3 Phase (230VAC single phase can be requested)
  • File format: G code, DXF and PLT files can be loaded directly with limited features for cutting. CAM software is not included and shall be purchased separately.
  • Accessories: three random collets, one collet spanner, four T slot clamps, 10 meters O-ring cord for vacuum table, one starting tool kit.
  • Lead time: Three months if not in stock.
  • The machine can be viewed at Heliner workshop in Lower Hutt.
Application

Furniture, Packaging, Signage, Woodwork

Gantry Height

300mm

Material

Foam, Plastic, Wood

Power Requirement

230VAC Single Phase, 4150VAC 3-Phase

Working Size

1200x2500mm
