Description

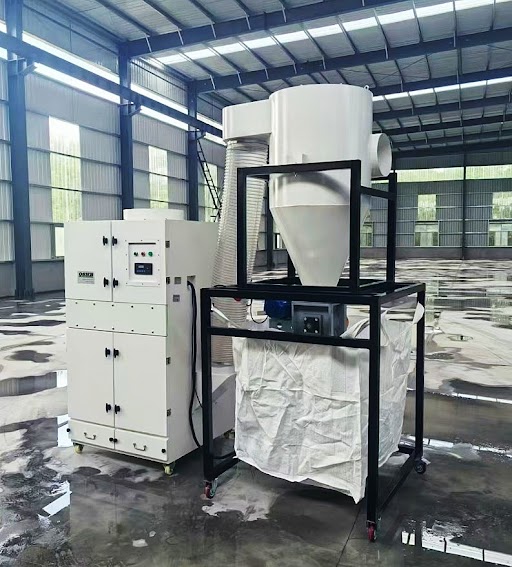

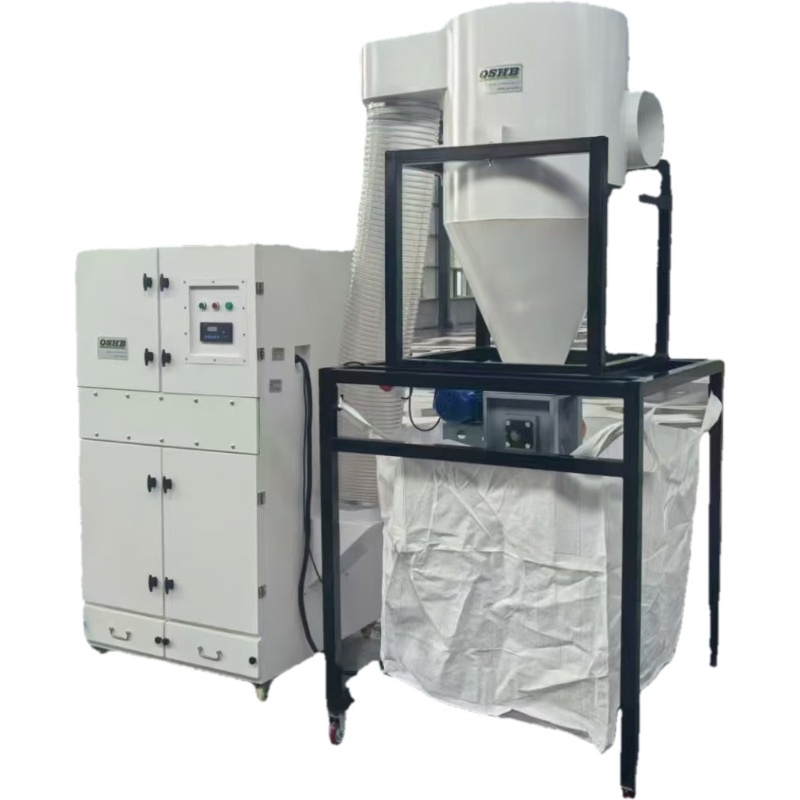

Enhance your workshop’s air quality and cleanliness with the Heliner Cyclone Dust Collector, a powerhouse boasting a 20HP (15KW) motor for unrivaled dust extraction capabilities. Despite this, our cyclone dust extractor only produces 75 decibels, promoting a quieter, more comfortable work environment.
This dust collector is two-stage, and initially achieves 99% dust separation – funneling particles into a capacious 240L wheelie bin. Four 1-micron dust filter then captures almost all residual particles, leaving your workspace clean and virtually dust-free.
This dust collector is the perfect companion to our extensive range of CNC routers.
Heliner is committed to providing you with a complete engineering solution. Everything from advice, to accessories such as dust extractors, to ongoing support. We discuss this, and more on our LinkedIn.
Or build your own perfect CNC setup. Check out our range of parts and accessories, from dust extractors to pumps to tooling.
| Voltage | Three phase 415V 50Hz |
| Power | 20HP / 15KW |
| Air Flow | 12500m3/h |
| Capacity | 240L wheelie bin(or larger containers) |
| Noise Level | 75 decibels |
| Weight | 300 kilograms |
| Assembled dimension | 1000 x 2400 x 2400mm |
| Inlet size | 1 x 300mm inlet |
| Air Lock Motor | 1KW |
| Filter | 4 x 1micro cartridge filter Pulse Jet auto filter cleaning |
