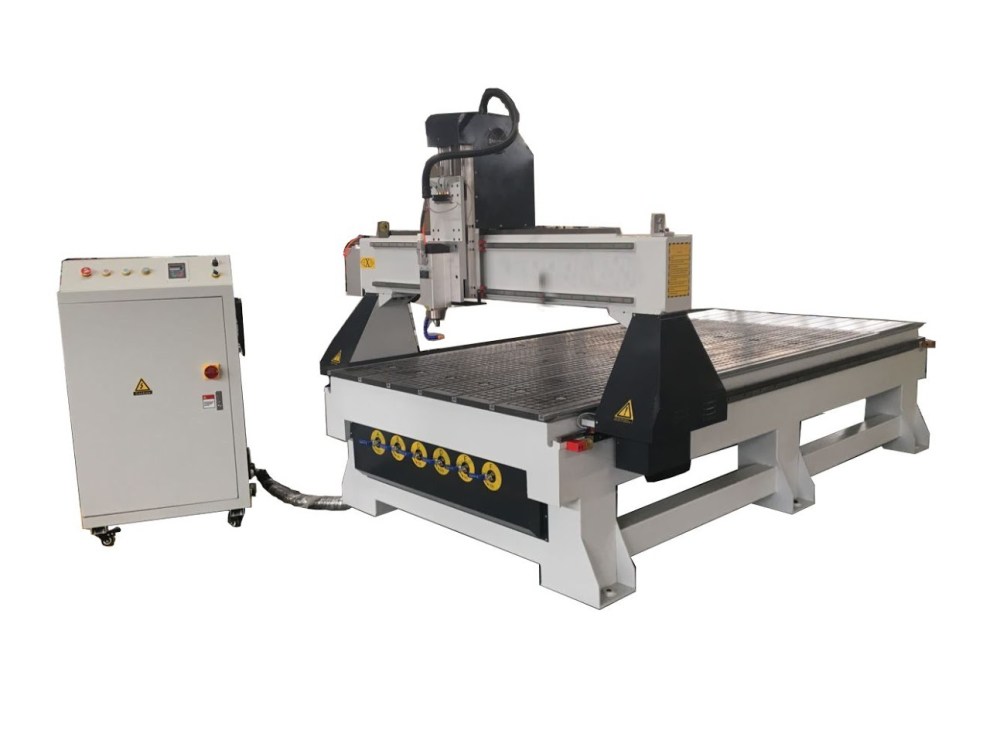

H-1325 CNC Router Comparison Table
Rev 3.0
|
Model |
H-1325A Router Industrial 3.5kw spindle  |
H-1325M Router Quick Tool Release 9kw Spindle  |
H-1325AC Router Auto Tool Change 9kw spindle  |
|---|---|---|---|
|
Spindle |
3.5Kw HQD Air Cool Spindle  |
9Kw HQD Air Cool Spindle  |
9Kw HQD Air Cool Spindle |
|
Tool holder |
ER25 collet – install tool bit with a spanner  |

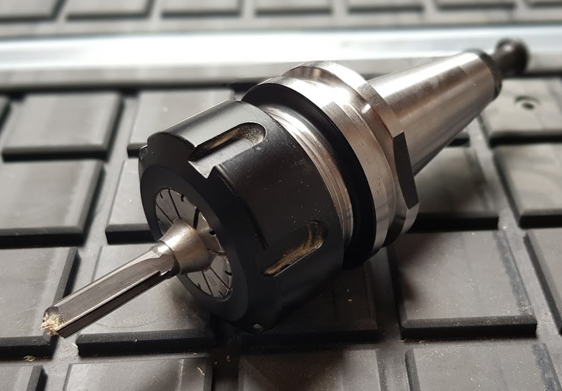

ISO30 Tool Holder with ER32 collet – pneumatic control  |
ISO30 Tool Holder with ER32 collet – pneumatic control |
|
Auto Tool Change |
Not Support |
Upgradable |

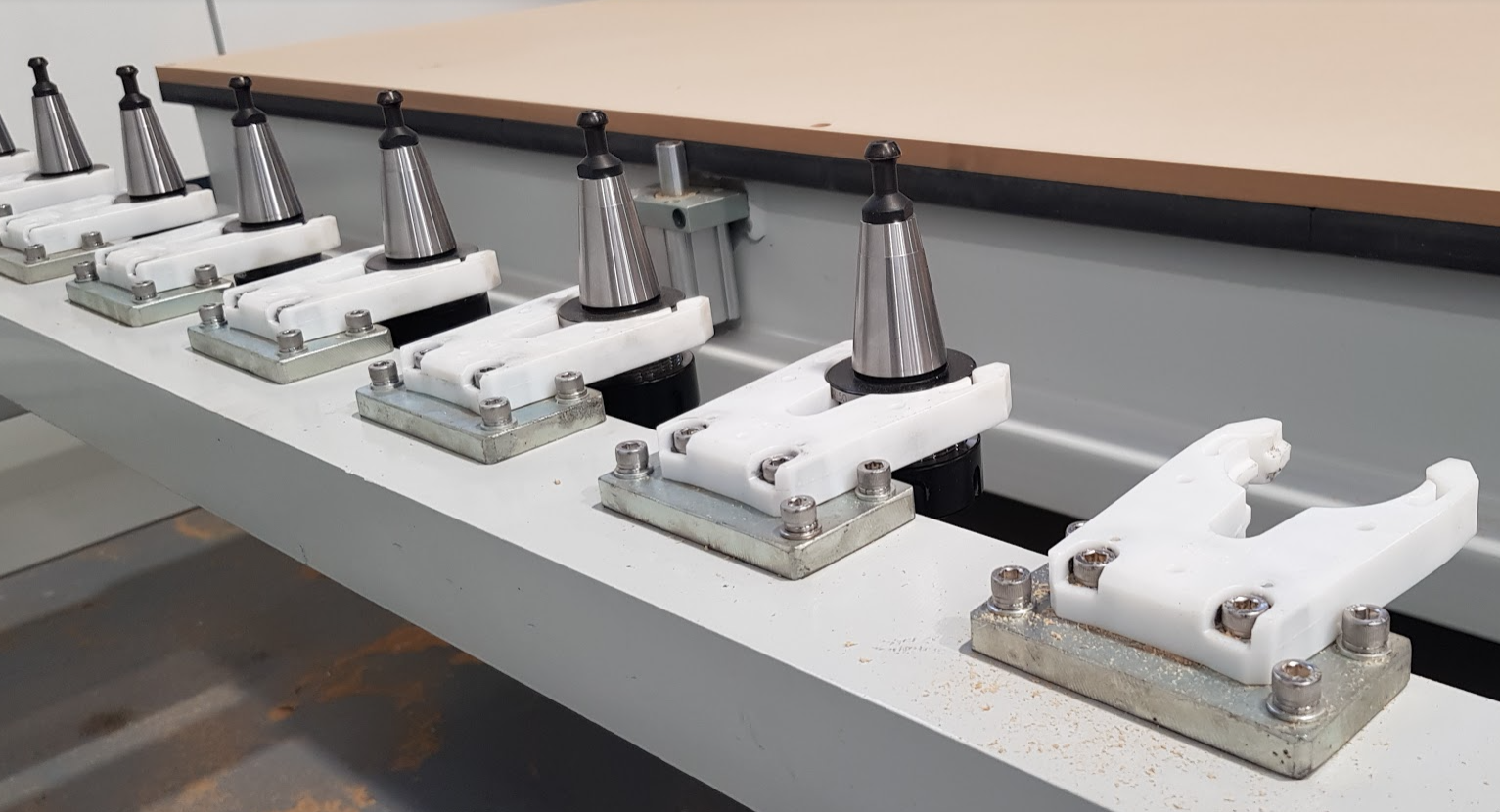

Yes linear tool magazine  |
|
Control System |
NK105 |
NK105 |
Syntec 60W |
|
Motors |
4x Hybrid Servo Motor |
4x Hybrid Servo Motor |
4x Servo Motor |
|
Power |
3-phase (default) Single-phase (option) |
3-phase only |
3-phase only |
|
Transmissions |
X, Y axes – rack and pinion Z – ball screw |
X, Y axes – rack and pinion Z – ball screw |
X, Y axes – rack and pinion Z – ball screw |
|
Limit Switch |
Proximity limit switches and the soft limit on all axes |
Proximity limit switches and the soft limit on all axes |
Proximity limit switches and the soft limit on all axes |
|
Vacuum Bed |
6 individually controlled channels  |
6 individually controlled channels |
6 individually controlled channels |
|

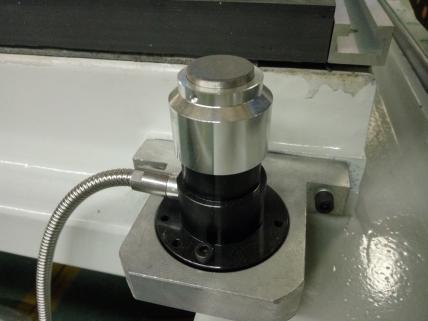

Tool Presetter |
Float tool presetter  |
Float tool presetter |
Fixed tool presetter  |
|

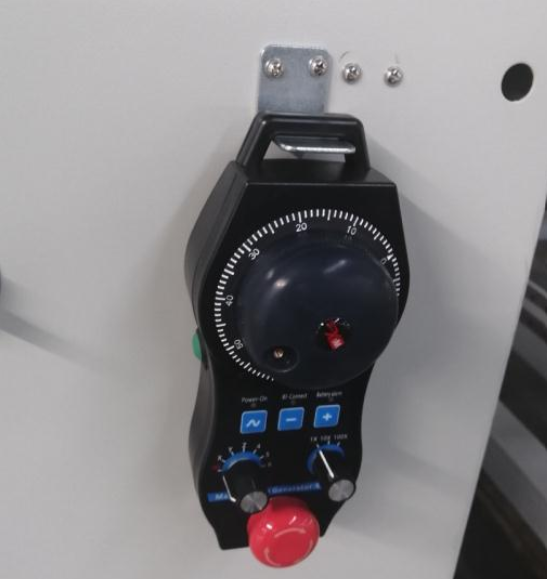

Hand controller (MPG) |
Integrated hand controller  |
Integrated hand controller |
Wireless MPG  |
|
Compressed air required |
No |
Yes |
Yes |
|

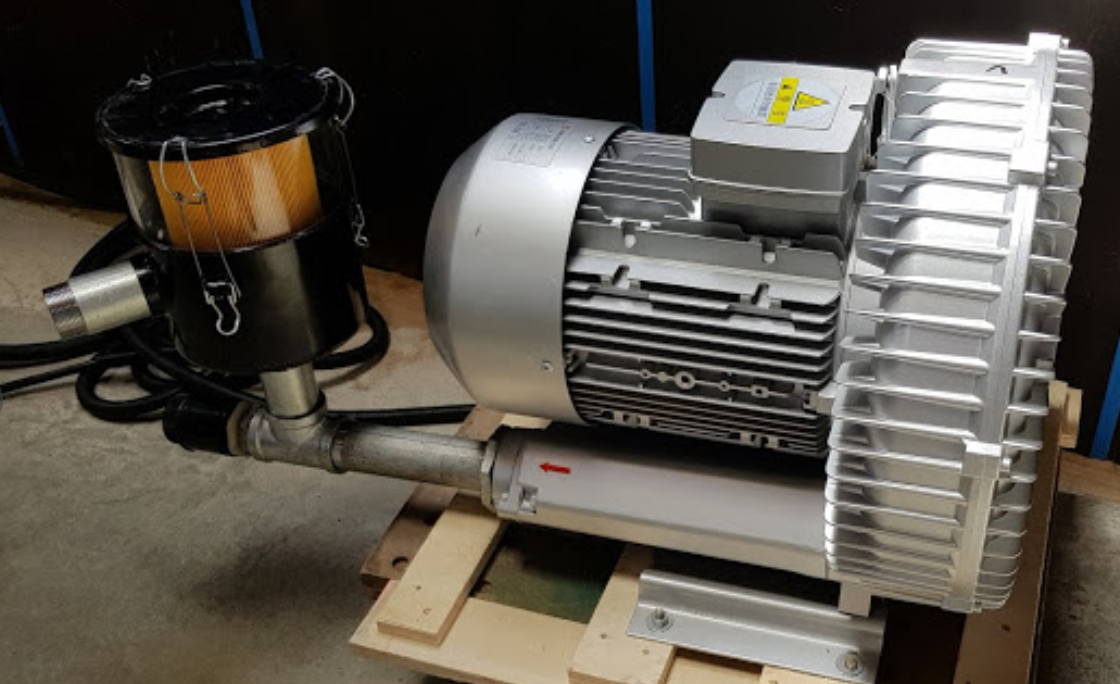

Vacuum Pump |
7.5kw vacuum pump  |
7.5kw vacuum pump |
7.5kw vacuum pump |
|
Dust Extractor |
3kw dust extractor  |
3kw dust extractor |
3kw dust extractor |
|
Optional Accessories |
Alignment pop-ups Coolant mist system for aluminum cutting Vacuum pump muffler Loading wheels Cyclone dust extractor High pressure vacuum pump Safety Light curtain |
Alignment pop-ups Coolant mist system for aluminum cutting Vacuum pump muffler Loading wheels Cyclone dust extractor High pressure vacuum pump Safety Light curtain |
Alignment pop-ups Coolant mist system for aluminum cutting Vacuum pump muffler Loading wheels Cyclone dust extractor High pressure vacuum pump Safety Light curtain Oscillating knife Drilling head Loading table Unloading table |
|
Price (excl. GST) |
Starts from $24.4k |
Starts from $34.8k |
Starts from $42.8k |
